A summary introduction of x86-64
Why Virtualization?
CPU 的性能相比从前有很大的提升\,具备支持多个操作系统的资源
节约服务器部署空间(节约车内空间)
节约服务器部署成本(节约成本\,同样适用与车)
根据实际情况动态的性能迁移(dynamic resource management)
Virtualization type

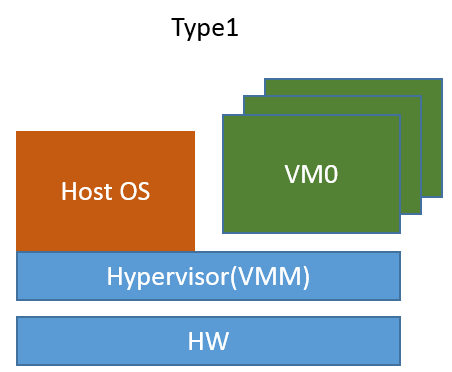

Type 1
Small shim layer runs on hardware
Create operating environment which guest OS can run. Resource assignment

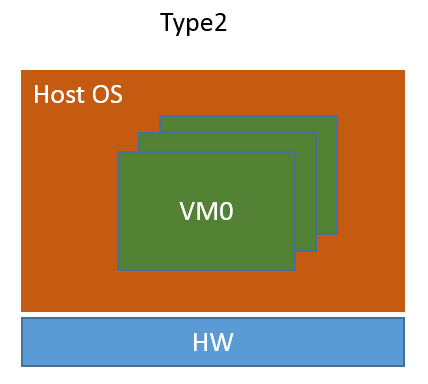

Type 2
A complete OS which with the ability to host another complete OS within a host process
Acceptable for desktop

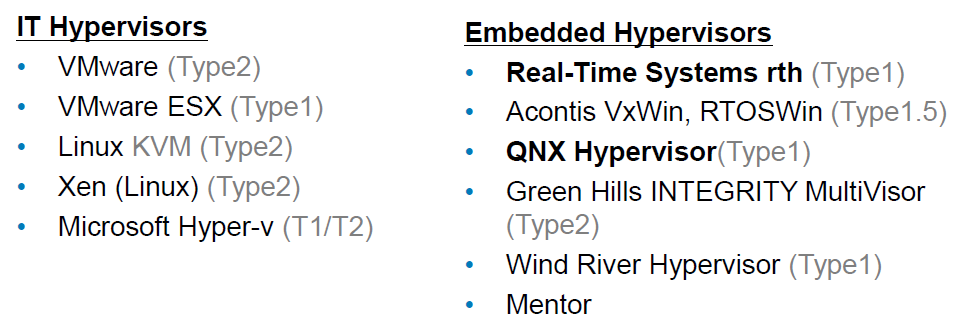

current solution on the market

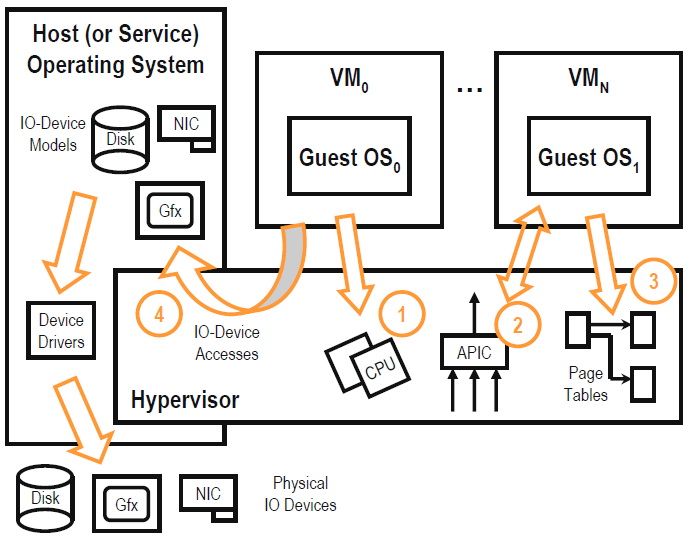

What a operation system depends on?
VM OS software is same as the OS direct running on HW\, No difference.
VM OS doesn’t know it is running in VM environment
-
CPU virtualization
-
Interrupt virtualization
-
Memory virtualization
-
IO device virtualization
-
Graphic virtualization

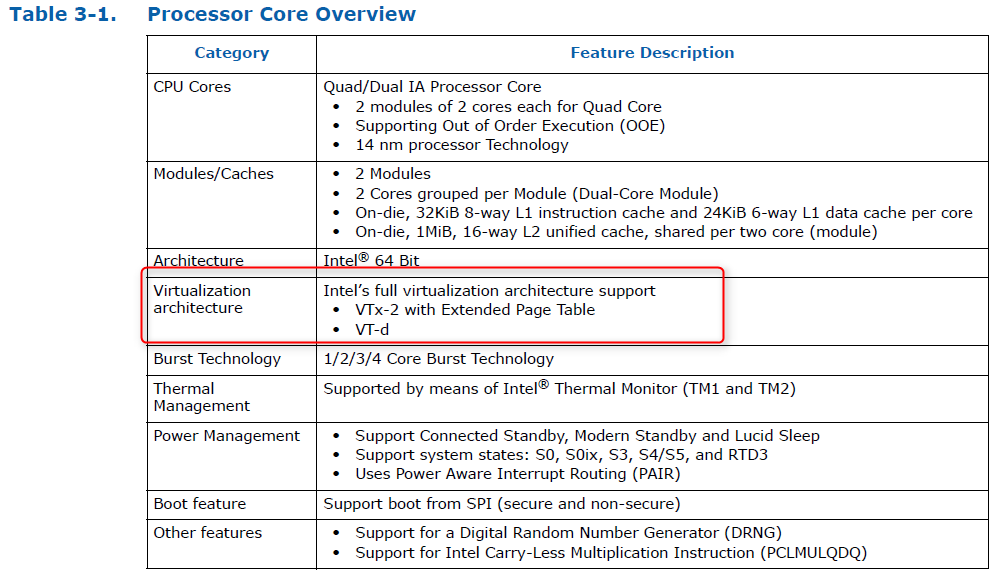

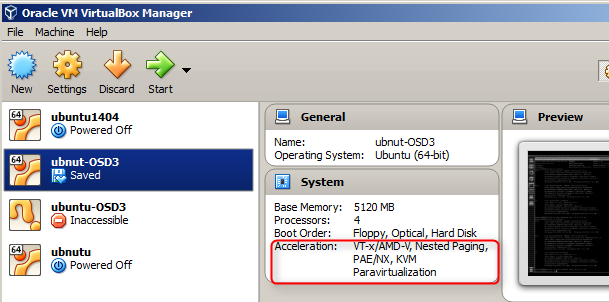

Intel X86 Hardware acceleration for virtualization

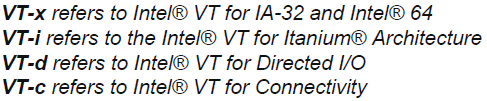

Intel’s technology for virtualization on the x86 platform
virtual-machine extensions(VMX)
Define processor-level support for virtual machines on IA processors
VMX instructions are provided
Adds ten new instructions: VMPTRLD\, VMPTRST\, VMCLEAR\, VMREAD\, VMWRITE\, VMCALL\, VMLAUNCH\, VMRESUME\, VMXOFF\, VMXON

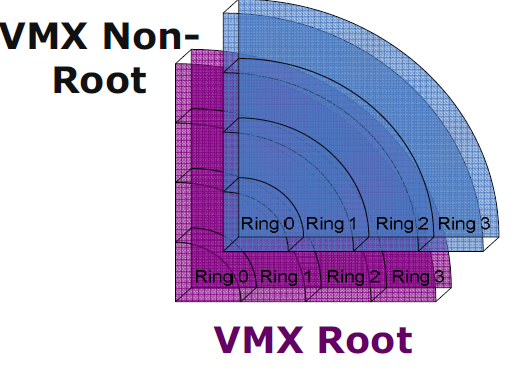

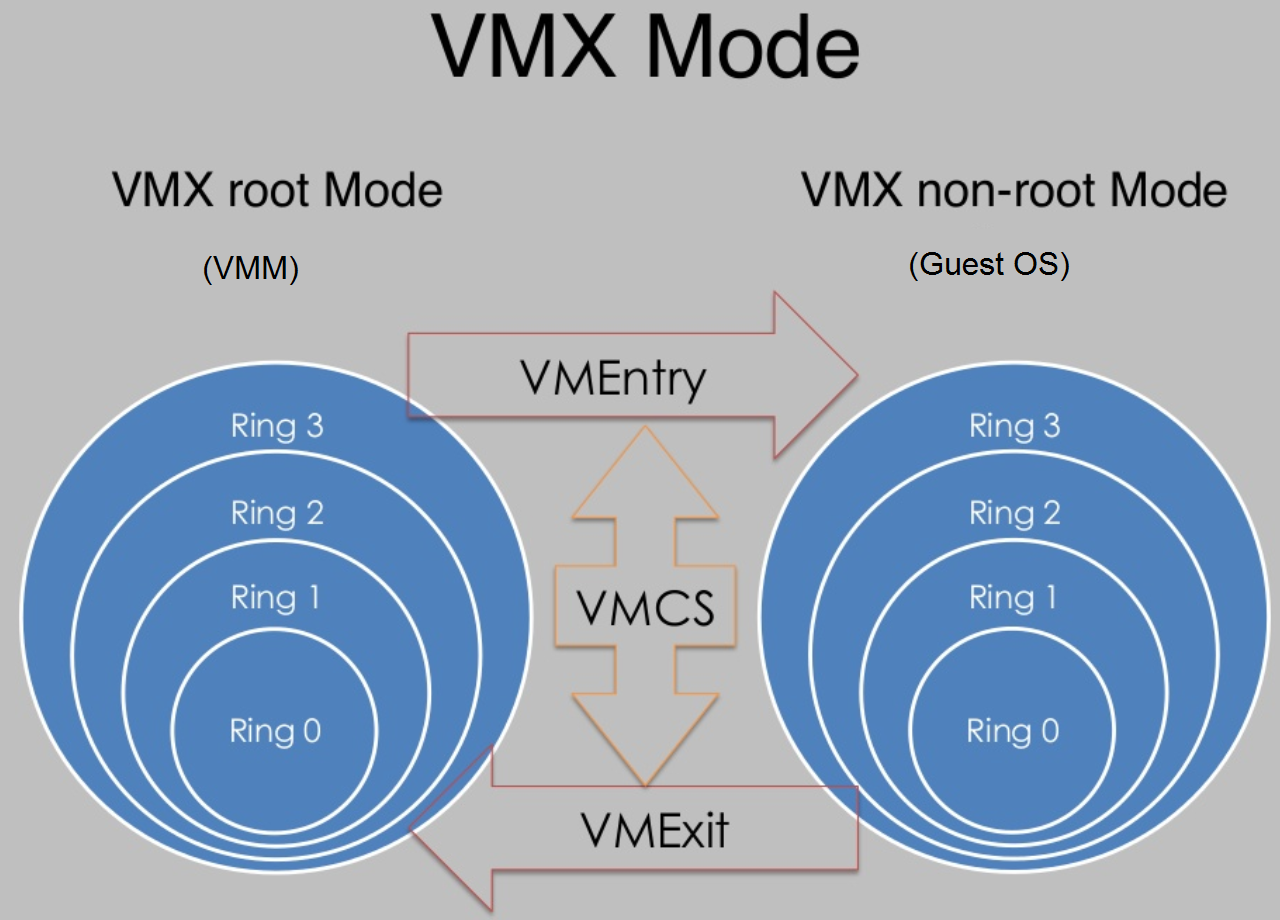

Import new processor operation: VMX operation
VMX root operation
VMX non-root operation
Two principal classes of software
Virtual-machine monitors (VMM)
IA privilege level
User space applications
VMX root operation

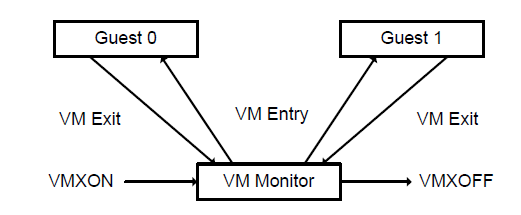

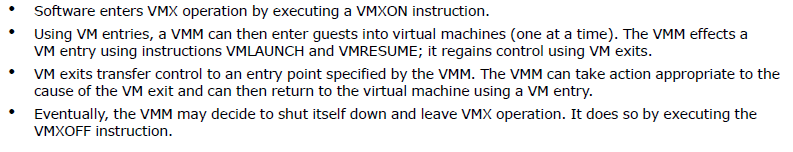

Lifecycle of VMM

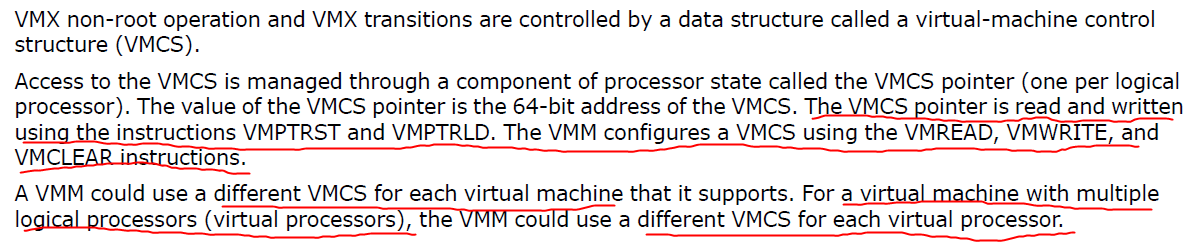

Virtual machine control structure
Guest-state area
VM-exit control fields
VM-entry control fields
VM-execution control fields
VM-exit information fields
APIC Virtualization and Virtual Interrupts
APIC(Advanced Programmable interrupt controller )
PIC (Programmable interrupt controller )

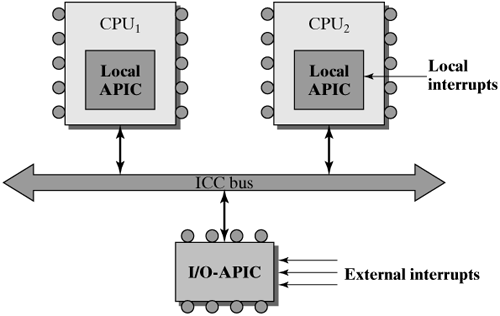

Split architecture design
Local APIC (LAPIC) for every processor
-
manage all external interrupts for some specific processor
-
accept and generate inter-processor interrupts (IPIs) between LAPICs
I/O APIC on a system bus
- route the interrupts it receives from peripheral buses to one or more local APICs
APIC Virtualization and Virtual Interrupts
Accesses to the APIC\, track the state of the virtual APIC\, and deliver virtual interrupts — all in VMX non-root operation with out a VM exit
APIC-register virtualization
Redirects most guest APIC reads/writes to virtual-APIC page
virtual-APIC page : a 4K page memory used to access the APIC
Most reads will be allowed without VM exits
VM exits occur after __ __ writes (no need for decode)
Virtual-interrupt delivery
Extend TPR(Task priority) virtualization to other APIC registers
No need for VM exits for most frequent accesses
CPU delivers virtual interrupts to guest (including virtual IPIs)
process posted interrupts

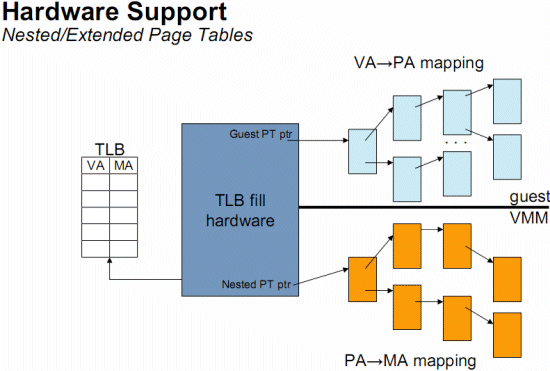

extended page-table mechanism ( EPT )
- Address Translation
- Guest OS expects contiguous\, zero-based physical memory
- VMM must preserve this illusion

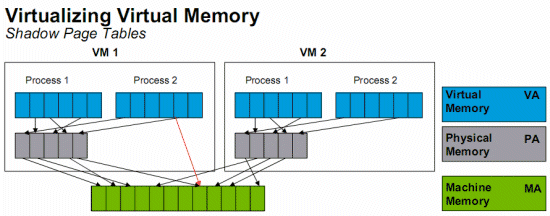

- Page-table Shadowing
- VMM intercepts paging operations
- Constructs copy of page tables
- Overheads
- VM exits add to execution time
- Shadow page tables consume significant host memory
With hardware support for nested paging caches both the Virtual memory (Guest OS) to Physical memory (Guest OS) as the Physical Memory (Guest OS) to real physical memory transition in the TLB. The TLB has a new VM specific tag \, called the Address Space IDentifier (ASID). This allows the TLB to keep track of which TLB entry belongs to which VM . The result is that a VM switch does not flush the TLB. The TLB entries of the different virtual machines all coexist peacefully in the TLB
- Extended Page Tables (EPT)
- Map guest physical to host address
- New hardware page-table walker
- A guest OS can modify its own page tables freely and without VM exits
- A single EPT supports entire VM: instead of a shadow pagetable per guest process
VIRTUAL PROCESSOR IDENTIFIERS (VPIDS)
The original architecture for VMX operation required VMX transitions to flush the TLBs and paging-structure caches.
This ensured that translations cached for the old linear-address space would not be used after the transition.
VPIDs introduce to VMX operation a facility by which a logical processor may cache
information for multiple linear-address spaces. When VPIDs are used\, VMX transitions may retain cached information and the logical processor switches to a different linear-address space.
VT-d
Intel Virtualization Technology for Directed I/O
A VMM may support various models for I/O virtualization:
-
Emulating the device API
-
assigning physical I/O devices to VMs()
-
permitting I/O device sharing in various manners
Key capabilities
-
allows to assign I/O devices to VMs in any desired configuration
-
DMA remapping. Supports address translations for device DMA data transfers
-
Interrupt remapping. Provides VM routing and isolation of device interrupts
-
Reliability features. Reports and records system software DMA and interrupt erros that may otherwise corrupt memory of impact VM isolation.

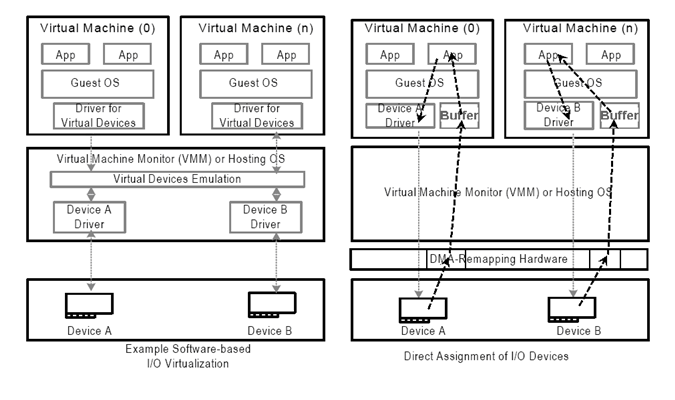

Understanding DMAR(DMA remapping)
When a VM or a Guest is launched over the VMM\, the address space that the Guest OS is provided as its physical address range\, known as Guest Physical Address (GPA) \, may not be the same as the real Host Physical Address (HPA) . DMA capable devices need HPA to transfer the data to and from physical memory locations. However\, in a direct assignment model\, the guest OS device driver is in control of the device and is providing GPA instead of HPA required by the DMA capable device. DMA remapping hardware can be used to do the appropriate conversion. Since the GPA is provided by the VMM it knows the conversion from the GPA to the HPA. The VMM programs the DMA remapping hardware with the GPA to HPA conversion information so the DMA remapping hardware can perform the necessary translation. Using the remapping\, the data can now be transferred directly to the appropriate buffer of the guests rather than going through an intermediate software emulation layer.
TRANSLATION:
具有DMA能力的物理设备往往使用HPA的物理内存\, 在direct assign modle中\, 是VM中的设备驱动程序在控制和提供GPA而不是HPA给这个设备.DMAR这时就被用来做GPA到HPA的地址转换.
在VMM中设置DMAR\, 其中包含 GPA 和HPA 的信息\, 这样DMAR的硬件就可以做它们之间的转换. 这样\,具有DMA能力的物理设备就可以直接和 VM的内存交换数据了
Graphics Virtualization
GVT-d :
Dedicatedly assigned to a virtual machine
GVT-s :
VM using a virtual graphics driver
Shared between multiple virtual machines by
GVT-g:
VM using native graphics driver
Shared between multiple virtual machines under time-sharing
Hypervisor directly assigns the full GPU resource to each virtual machine. Thus\, during its time slice\, while the virtual machine gets a full dedicated GPU\, from overall system view point several virtual machines share a single GPU.
Graphics Virtualization

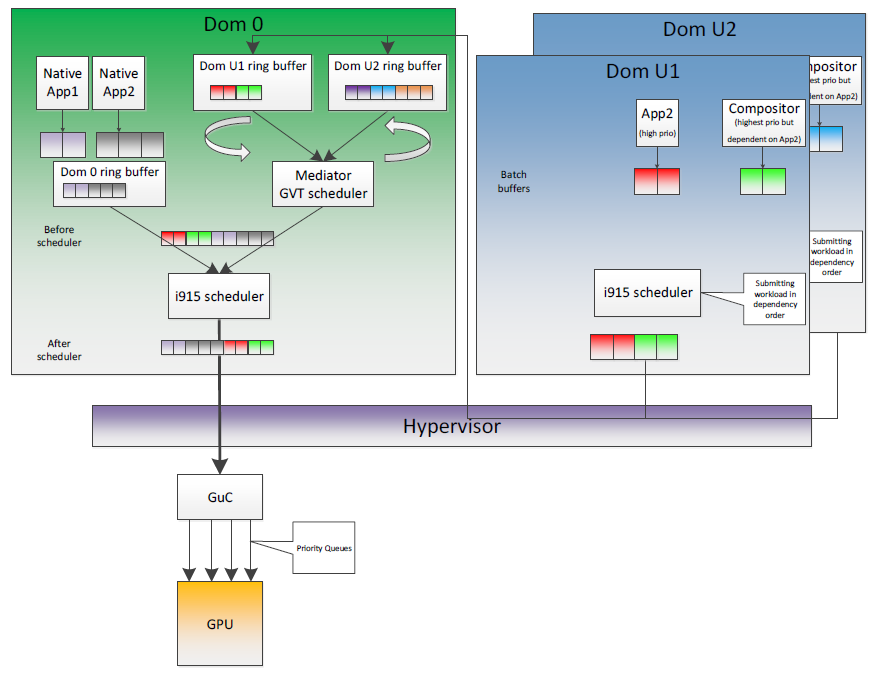

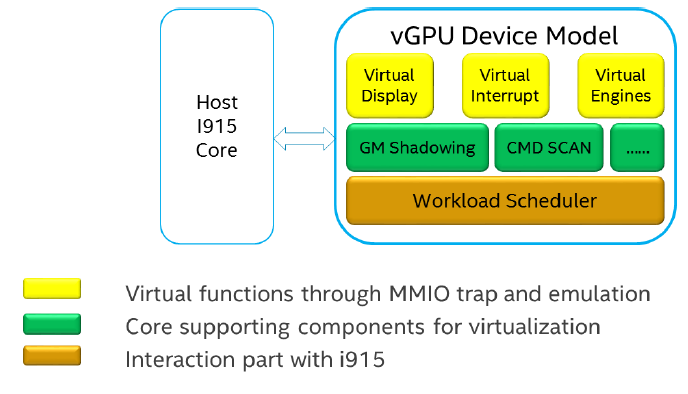

vGPU device model
Virtualization in the ARM Cortex™ Processors
How does ARM do Virtualization
-
Second stage of address translation (separate page tables)
-
Functionality for virtualizing interrupts inside the Interrupt Controller
-
Functionality for virtualizing all CPU features\, including CP15
-
Option of a MMU within the system to help virtualize IO
-
New Non-secure level of privilege to hold Hypervisor

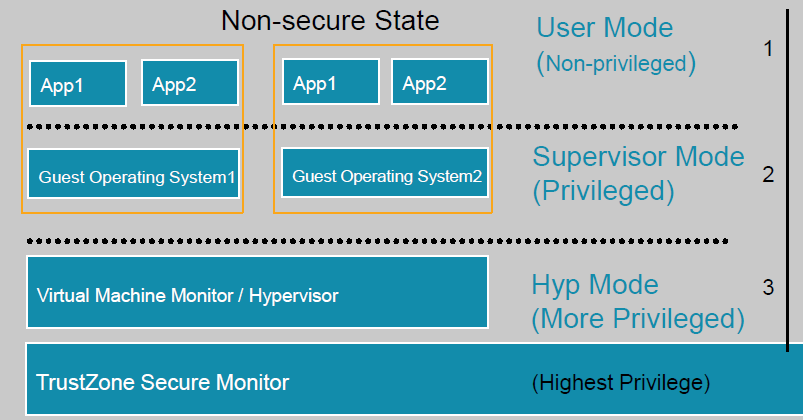

Privilege
-
Guest OS same kernel/user privilege structure
-
HYP mode higher privilege than OS kernel level
-
VMM controls wide range of OS accesses
-
Hardware maintains TZ security (4th privilege)
Virtualization in the ARM Cortex™ Processors

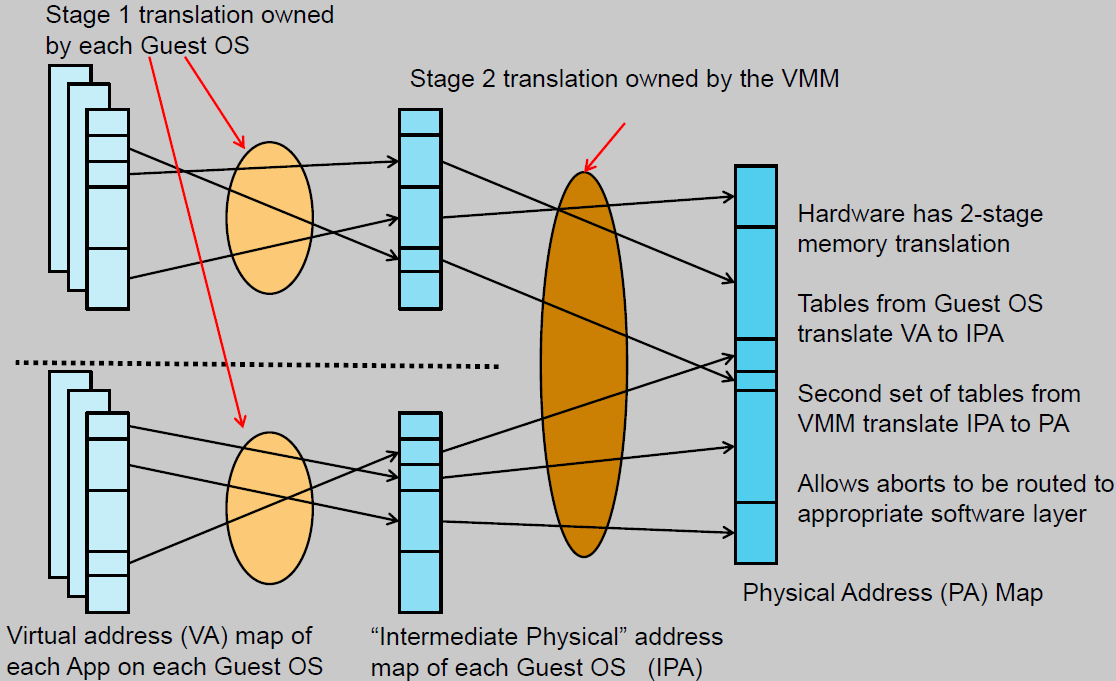

Virtual Memory in Two StageS
Virtual interrupt(Virtual GIC )
-
Physical registers and virtual registers
-
Non-virtualized system and hypervisor access the physical registers
-
Virtual machines access the virtual registers
-
Guest OS functionality does not change when accessing the vGIC
-
Virtual registers are remapped by hypervisor
-
Interrupts are configured to generate a Hypervisor trap
Hypervisor can deliver an interrupt to a CPU running a virtual process
